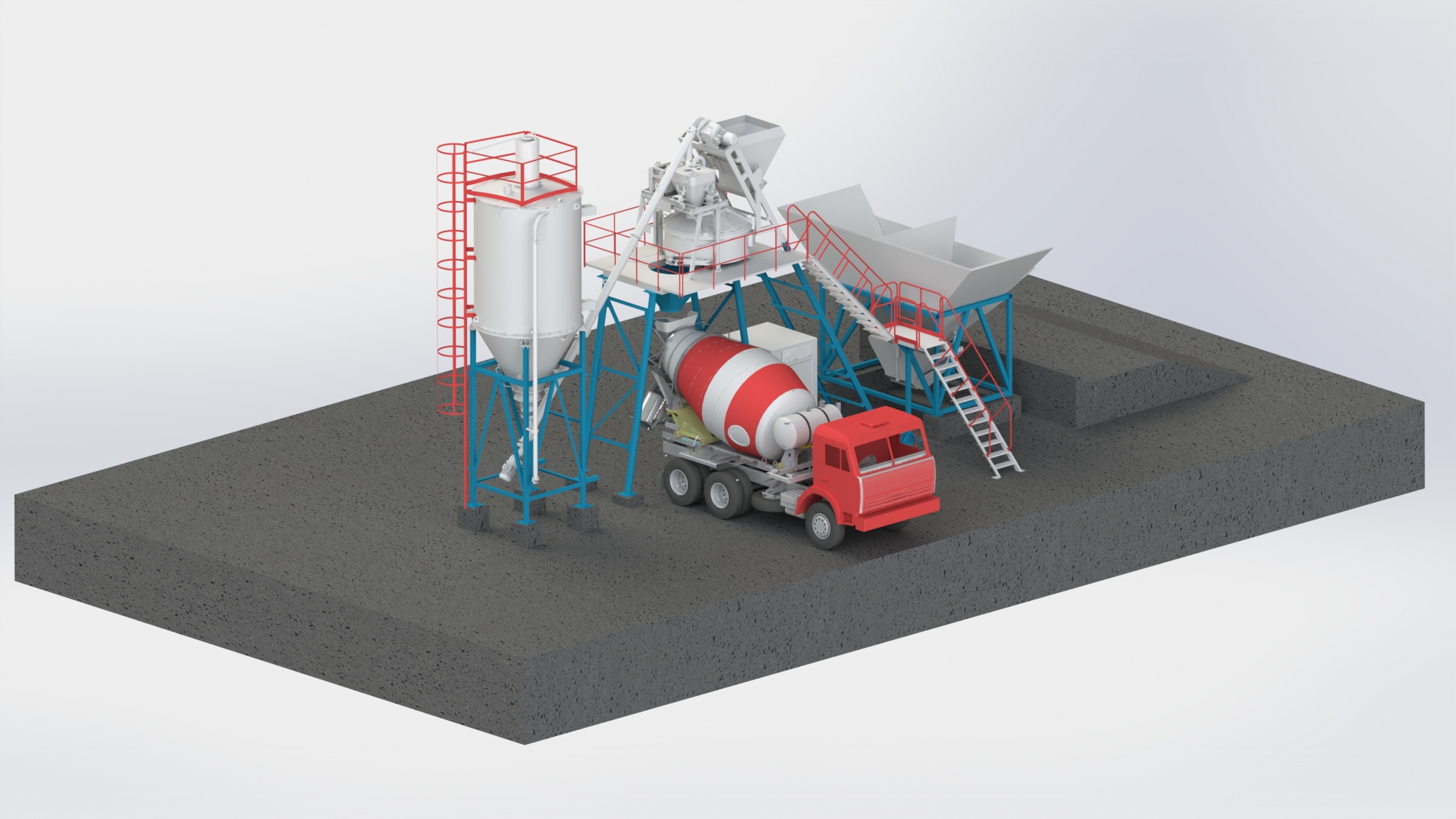

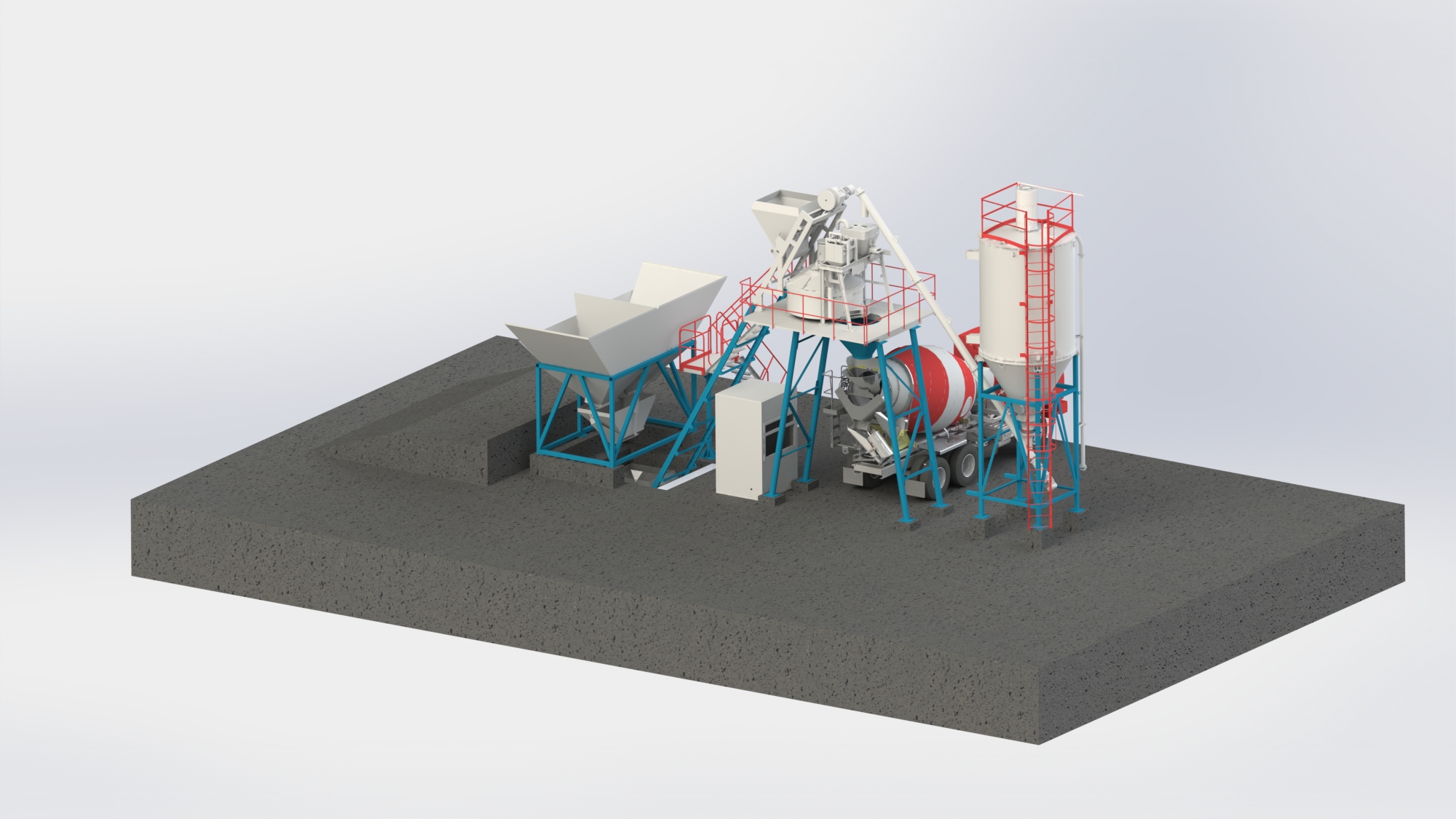

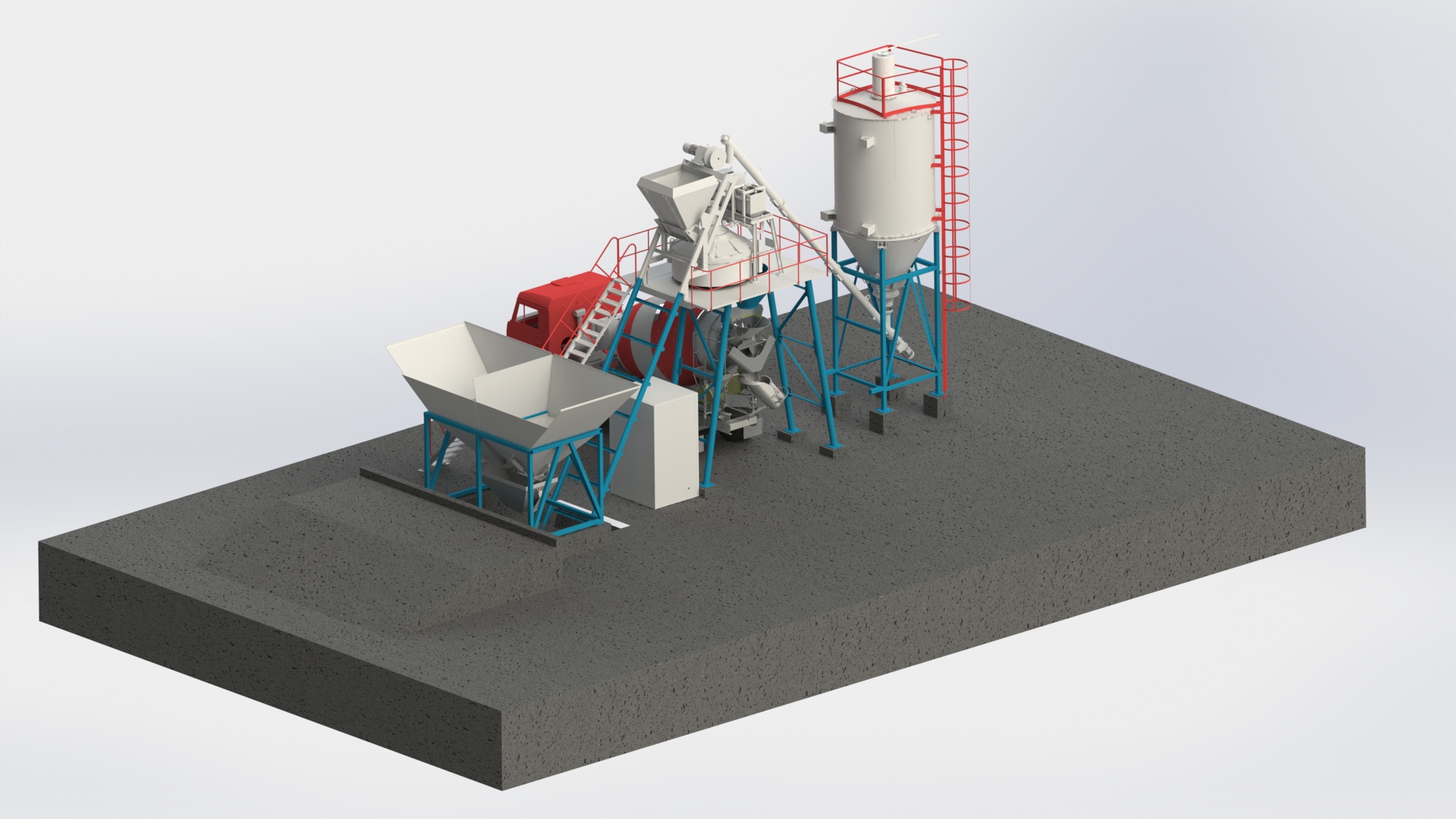

Quick-erect concrete plant GRANITE 25 m.cub/hr, skip hoist

Standard configuration

Performance

25 m³/hr

Installed capacity

40 kW

Season version

summer (option – winterization)

Concrete mixer

Planetary-rotary concrete mixer SB-242-6

1 pcs

Charged materials volume

750 ltrs

Ready batch max. volume

500 ltrs

Storage feed bins (tanks)

●aggregates

charging from 1 ramp

- total capacity, t

27

- compartments, pcs

2

- sand, t

12

- churning stone, t

15

●cement (binding material)

- total capacity, t

- ( opt. 20; 50; 75)

- silos, pcs

- ( opt. 1; 2; 3)

- screw feeder diameter, mm

Ø194

●water

- tank installed + volume, m³

- ( opt. 3 - 10 m³)

- or water feed from an outer source (DN=75÷100; PN=2,0atm)

+

●chemical additives

- tank installed + volume, ltrs

- ( opt. 200 ÷ 600 ltrs )

- feed tanks, pcs

- ( opt. 1; 2)

Dimensions

Length

14900 mm

Width

8100 mm

Height

9000 mm

Weight

10330 kg

Batchers

Type

weight, tensometric, discrete

●aggregates

- upper weighting limit, kg

1200

- batchers, pcs

1

- load cells, pcs

4

- batching error

± 2%

●cement (binding material)

- upper weighting limit, kg

300

- load cells, pcs

3

- batching error

±1%

●water

- upper weighting limit, kg

120

- load cells, pcs

1

- batching error

± 1%

●chemical additives

- batchers, pcs

1 (option-2)

- upper weighting limit, kg

10; 40; 100 ( on Buyers choice)

- load cells, pcs

1

- batching error

±1%

Pneumatics

-manufacturer

Camozzi (Italy)

-air consumption, not less, m.cub/min

1,0

-air pressure, MPa

0,4÷0,6

-compressor (type)

opt. EPKU 1,4/10-500 (1,4 m.cub/min)

opt. AirCast SB4/F-500 (1,1 m.cub/min)

Automatic control system

MixMaster
